Belt Return Line

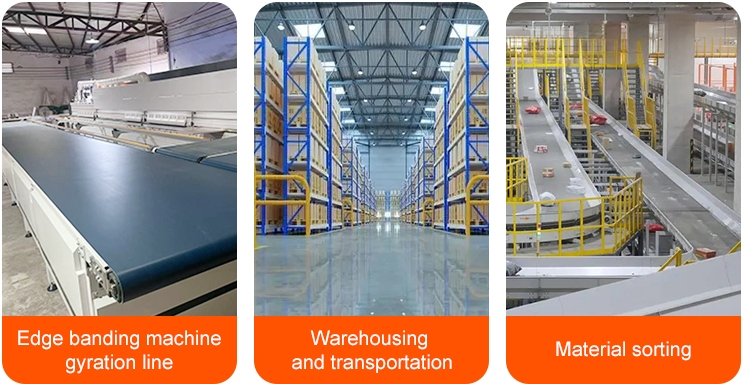

Belt return conveyor is a helpful equipment for auto edge banding machines. Only one worker can operate the machine, no need to pick up panels at the end. The belt will automatically transport the panels to the worker through the belt, time saving, labor saving and convenient.

  • Belt Return Line

Availability:
Quantity:
Inquire Add to Basket
Belt Return Line Belt Conveyor Conveyance Panel Furniture Processing Edgebander Return System Return Conveyor
Product Description

Belt Return Line Paramenters

6-10m Return Line


Countertop appearance dimenslons
Table A
Length 1350xWidth 500xHeight 800mm (adjustable)
Table B
Length 1550xWidth 1500xHeight 800mm (adjustable)
Table C
length 6250/7000/8000/9000 110000xwidth 1250xheight 800mm(adjustable)
The linear belt adopts
Industrial green PVC belt, 2mm
Line body support frame adopts
80x40x5mm 80x40x2mm
Belt roller adopts
Galvanized pipe $38mm thickness 1.5mm
Foot cup
Positive and negative adjustable 8Omm


Motor
Table A
0.2kW
Table B
0.4kW
Table C
0.75kW
Inverter: 0.75kW 0-30m/min adjustable
By panel size
30x30-1200x2400mm
Load bearing
100kg
Shipping weight
500kg

Belt Return Line Details Images

Belt-Return-Line (1)Belt-Return-Line (2)Belt-Return-Line (3)Belt-Return-Line (4)Belt-Return-Line (5)Belt-Return-Line (6)Belt-Return-Line (7)Belt-Return-Line (8)
