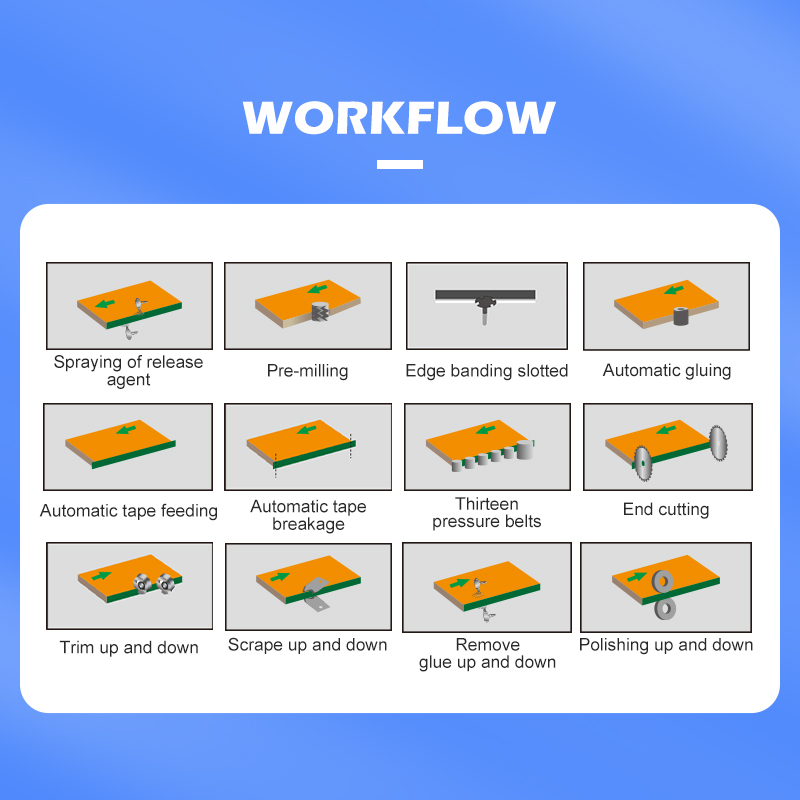

1.Diamond double-knife pre-milling effectively prevents chipping, high milling precision, strong wear resistance, and long service life.
2.Glue pot:Large capacity, no-clean glue pot, rapid dissolution, small glue line, easy to seal.
3.Pressing unit:Adopts thirteen independent staggered pressing to meet the pressing needs of different angles, and uses hot air pressing to make the edge banding more firmly pressed.
4.Hot air gun heating: The pressing unit is equipped with a hot air gun heating auxiliary to soften the edge strip while avoiding the problem of hot melt glue cooling too quickly and not sticking to the board.
5.End cutting:Quickly cut off the excess edge strips at both ends, and the two saw blades cooperate front and back to achieve high precision and high efficiency.
6.Scraping unit:Trimming: trimming up and down, trimming off the excess edge material on the upper and lower sides of the board, and trimming the upper and lower edges of the edge banding to be round and smooth.
7.Scraping: Use the upper flat scraper and the lower arc scraper to scrape off the excess edge banding and glue line, leaving a horizontal arc to create a natural arc.
8.High-speed edge banding:10-16 m/min, greatly improving edge banding efficiency, intelligent operation, smooth processing, one-time molding.
9.Polishing unit:Adding a glue removal device before polishing can better remove the residual glue line on the board, making the edge banding round, smooth and clean.
10.Wide strip:Increase the compatibility of the board surface after pulling apart, convenient for large board operation.
| Edge banding thickness | 0.8-2mm | |||

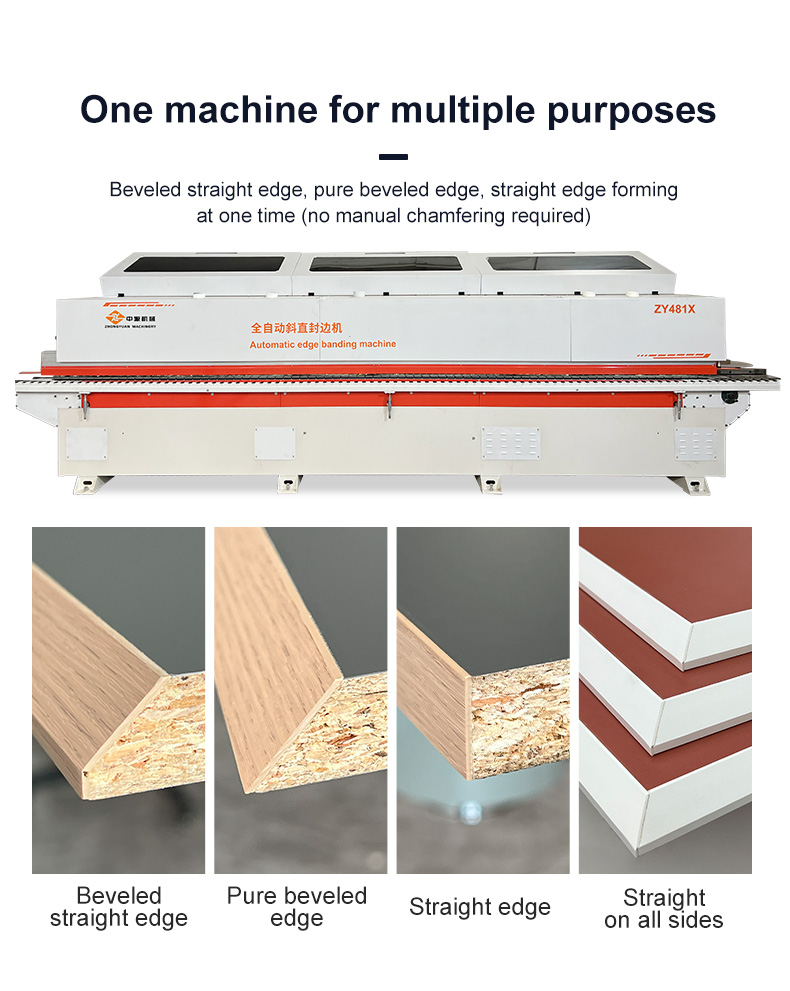

| Sheet thickness | Diagonal straight edge | 15-35mm | ||
| Pure slant | 18-25mm | |||
| Straight edge | 15-45mm | |||
| Conveyor speed | 10-16m/min | |||
| Conveyor motor | 2.2Kw40 shaft | |||
| Straight edge milling motor | 3.5KW × 2 variable frequency speed regulation | |||
| Slant milling motor | 6KW × 2 variable frequency speed regulation | |||
| Edge banding slotting motor | 600W | |||
| Rubber box motor | 0.55kw | |||
| Head and tail motor | 0.37KW × 2 variable frequency speed regulation | |||
| Chamfering motor | 2.2KW × 2 frequency converter speed regulation | |||
| Refined motor | 0.55KW × 2 frequency converter | |||
| Rubber box heater | 2kw | |||
| Auxiliary heating | 2KW+2KW+500W | |||
| Up and down polishing motor | 1.1KW | |||
| Electric lifting motor | 0.37KW | |||
| Total power | 36.56KW | |||
