Double Stack Arm Curved Linear Edging Machine Curve Woodworking Edge Banding Machine With Trimming

Double Stack Arm Curved Linear Edging Machine Curve Woodworking Edge Banding Machine With Trimming

Double Stacked Arm Fully Automatic Curve Edge Banding And Trimming All-in-one Machine
1.Double stacking arm structure:Edge banding and trimming each have separate stacking arms, which can easily realize 2-person processing and improve work efficiency.Edge banding stacking arms can be used for edge banding and trimming, and can easily operate large panels.
2. Opening and closing limiter/pressing strip assembly:When feeding the belt, it automatically returns to its original position; when the edge banding belt is finished, it automatically opens. (Avoid glue accumulation due to long-term rotation of the rubber roller)
3.Machine head rotation:The angle of the edge banding/trimming assembly is adjustable, suitable for a variety of panels, and increases compatibility.Edge banding rotation angle -70~+35° Edge trimming rotation angle ±45°
4.Built-in arm brake:Release the suction cup, the brake starts automatically to prevent the arm from swinging.

Model:
KN-800

Availability:

Quantity:



Inquire Add to Basket

Curved Linear Edging Machine Stack Arm Edge Banding Machine Curve Edge Banding Trimmer Machine

Product Description

Double Stacked Arm Automatic Curve Edge Banding Trimmer Machine

Edge Banding

1.Rotatable touch screen:Touch screen control panel, can store 20 sets of data, convenient for mass production.

2.Glue pot type glue coating assembly:Internal Teflon coating PUR, EVA dual-use upper glue pot can quickly dissolve glue, touch screen one-button glue discharge, simple and convenient, internal Teflon layer (no stick glue pot wall, no glue waste)

3.Limiting column:Multiple limit to prevent edge banding from offset or backing up, to ensure smooth sealing.

4.Standard secondary auxiliary laminating wheel:The edge banding strip and the board are pressed twice to increase the bonding firmness.

5.Upgraded cutter assembly:Ultra-fast response, ensure vertical cutting accuracy, fast cutting, no burrs. Automatic spraying of glue remover:Avoid glue sticking at the laminating wheel and the pressure strip plate to ensure the edge banding effect.

Edge Trimming

1.Trimming start-stop device:Photoelectric device, automatically senses the board, stops rotating if no board is sensed after 5 seconds.

2.Profiling power wheel:During trimming, the plate is driven to rotate according to the speed of the profiling wheel
3.Upper and lower trapezoidal blade design:Scrape as the board move, scrape off excess edge banding and glue line after trimming.

4.Trimming glue cleaning device:Automatically sprays glue cleaning liquid, the spray can be adjusted in size.

5.High-efficiency dust collection device:Dense brush with 150mm thick dust collection tube, sucks debris into the vacuum cleaner.

Double Stacked Arm Curve Edge Banding Trimmer Machine Paramenters

Power supply voltage	380V/three-phase four-wire 50HZ	Trimming rotation angle	±45°
Total power	6kW	Edge width	14-70mm
Air source pressure	0.6-0.8Mpa	Edge thickness	0.5-3mm (related to the material of the edge)
Glue pot capacity	2600ml	Trimming board thickness	<14mm single-sided trimming 14-70mm Upper and lower double trimming (related to trimming knife)
Glue pot temperature	110°C-210°C	Inner arc radius	≥20mm (special operation can seal radius 4mm)
Hot melt adhesive type	PUR/EVA	Edge sealing speed	0-20cm/s
Air volume	9800m'/h	Profiling speed	0-24cm/s
Gas tank capacity	2L	Edge sealing material types	PVC\wood veneer\melamine\plastic and other materials
Edge rotation angle	-70~+35°	External dust suction	φ150mm

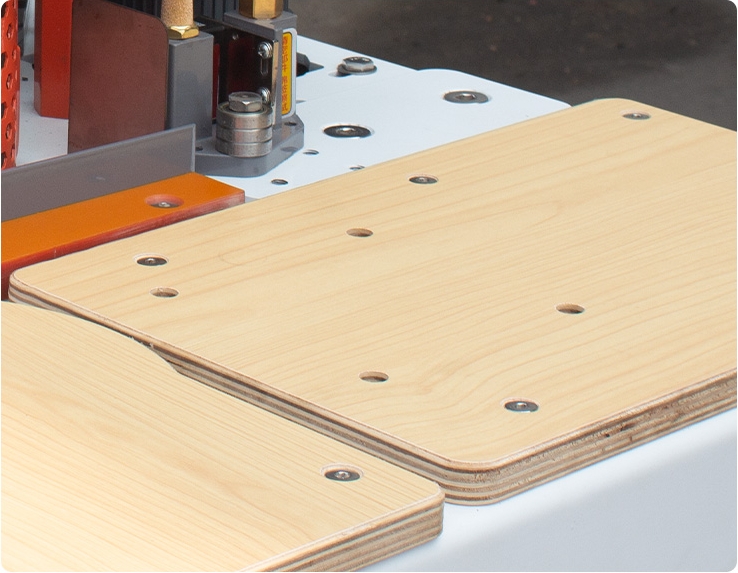

Double Stacked Arm Curve Edge Banding Trimmer Machine Details \

Curve-Edge-Banding-Trimmer-Machine (1)
